Technical Specifications:

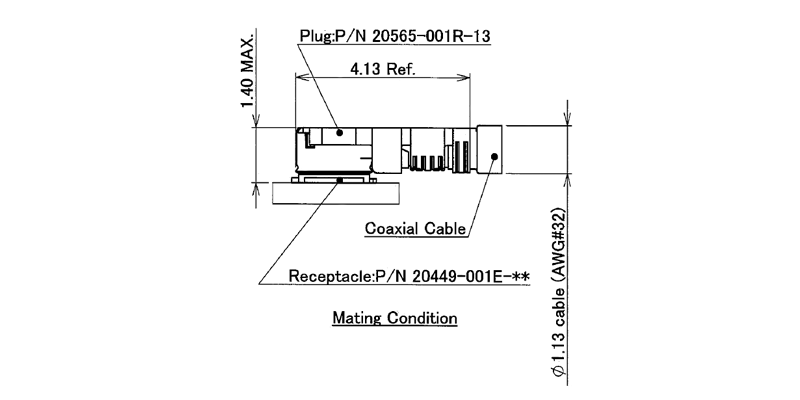

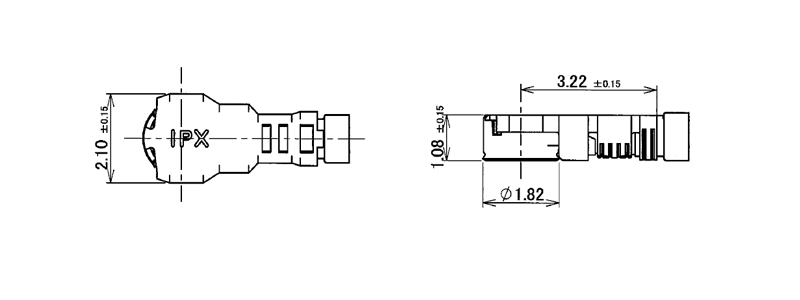

1. Plug Part No.: 20565-001R-13
2. Receptacle Part No.: 20449-001E/20579-001E-01
3. Applicable cable: OD1.13mm Coaxial cable
4. Frequency Range : DC up to 6GHz
5. VSWR : 1.3MAX at 0.1-3GHz, 1.45MAX at 3-6GHz
6. Characteristic Impedance : 50 ohm ( Nominal )
7. Temperature : -40℃ to +90℃
8. Rated Voltage : AC 60V
9. Contact Resistance : 20m ohm MAX. ( Signal ) and 20m ohm MAX. ( Ground )
10. Withstand Voltage : AC 200V
11. Insulation Resistance : 500M ohm MIN. / DC 100V
12. Total unmating force : Initial 5N Min.; After 30 cycles 3N Min.
13. Crimp strength : 20565-001R-13, 20N Min.
