Technical Specifications:

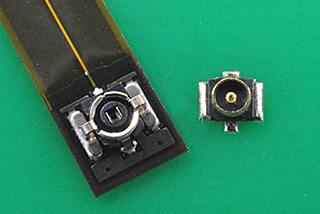

1. Plug Part No.: 20462-001E
2. Receptacle Part No.: 20449-001E

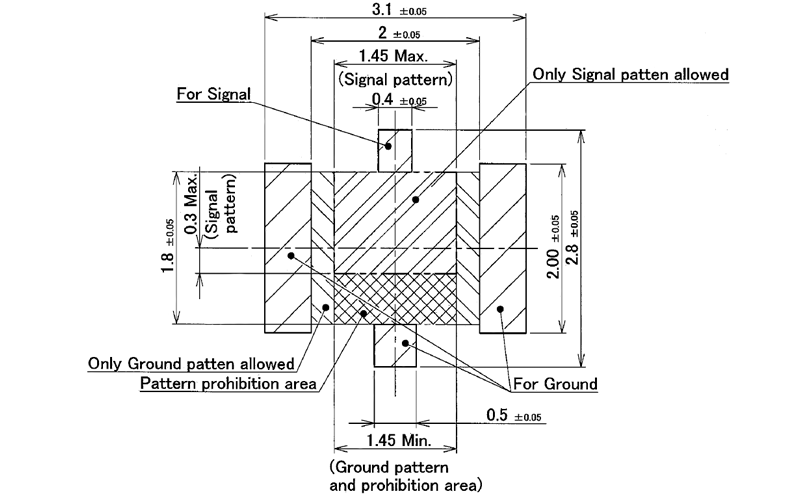

3. Applicable for SMT on FPC
4. Frequency Range : DC up to 6GHz
5. VSWR : 1.3MAX at 0.1-3GHz, 1.5MAX at 3-6GHz
6. Characteristic Impedance : 50 ohm ( Nominal )
7. Temperature : -40℃ to +90℃
8. Rated Voltage : AC 60V
9. Contact Resistance : 20m ohm MAX. ( Signal ) and 20m ohm MAX. ( Ground )
10. Withstand Voltage : AC 200V
11. Insulation Resistance : 500M ohm MIN. / DC 100V
12. Total unmating force : Initial 4N Min.; After 30 cycles 2N Min.
