Technical Specifications:

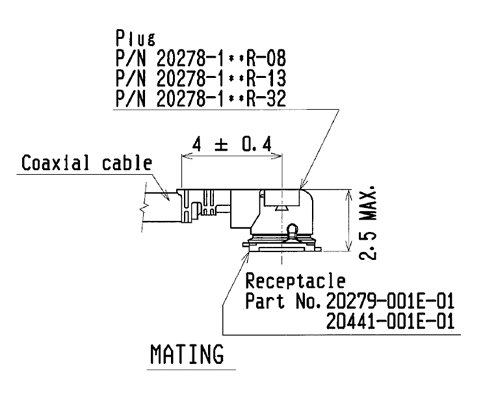

1. Plug Part No.: 20278-112R-08,
                        20278-112R-13,
                        20278-112R-32,

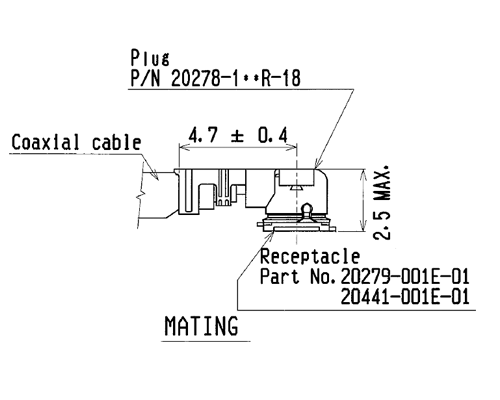

                        20278-112R-18,

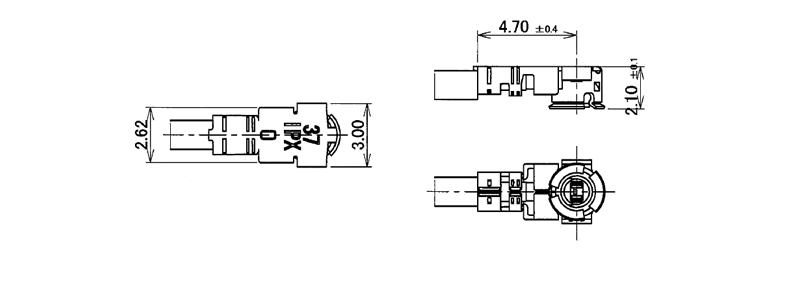

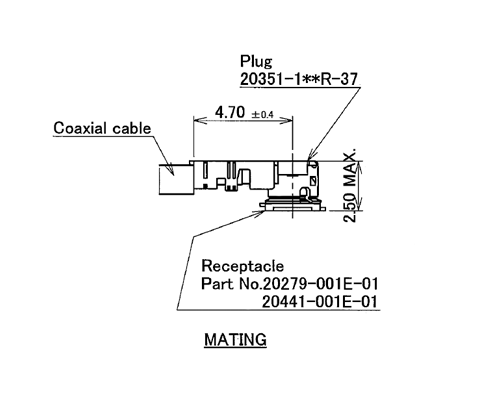

                        20351-112R-37
2. Receptacle Part No.: 20279-001E-01
3. Applicable cable: OD0.81mm Coaxial cable,
                            OD1.13mm Coaxial cable,
                            OD1.32mm Coaxial cable,
                            OD1.37mm Coaxial cable,
                            RG178 Coaxial cable
4. Frequency Range : DC up to 6GHz
5. VSWR : 1.3MAX at 0.1-3GHz, 1.5MAX at 3-6GHz
6. Characteristic Impedance : 50 ohm ( Nominal )
7. Temperature : -40℃ to +90℃
8. Rated Voltage : AC 60V
9. Contact Resistance : 20m ohm MAX. ( Signal ) and 10m ohm MAX. ( Ground )
10. Withstand Voltage : AC 200V
11. Insulation Resistance : 500M ohm MIN. / DC 100V
12. Total unmating force : Initial 5N Min.; After 30 cycles 3N Min.
13. Crimp strength : 20278-112R-08/13/32, 10N Min.;
                             20278-112R-18, 15N Min.;
                             20351-112R-37 25N Min.
